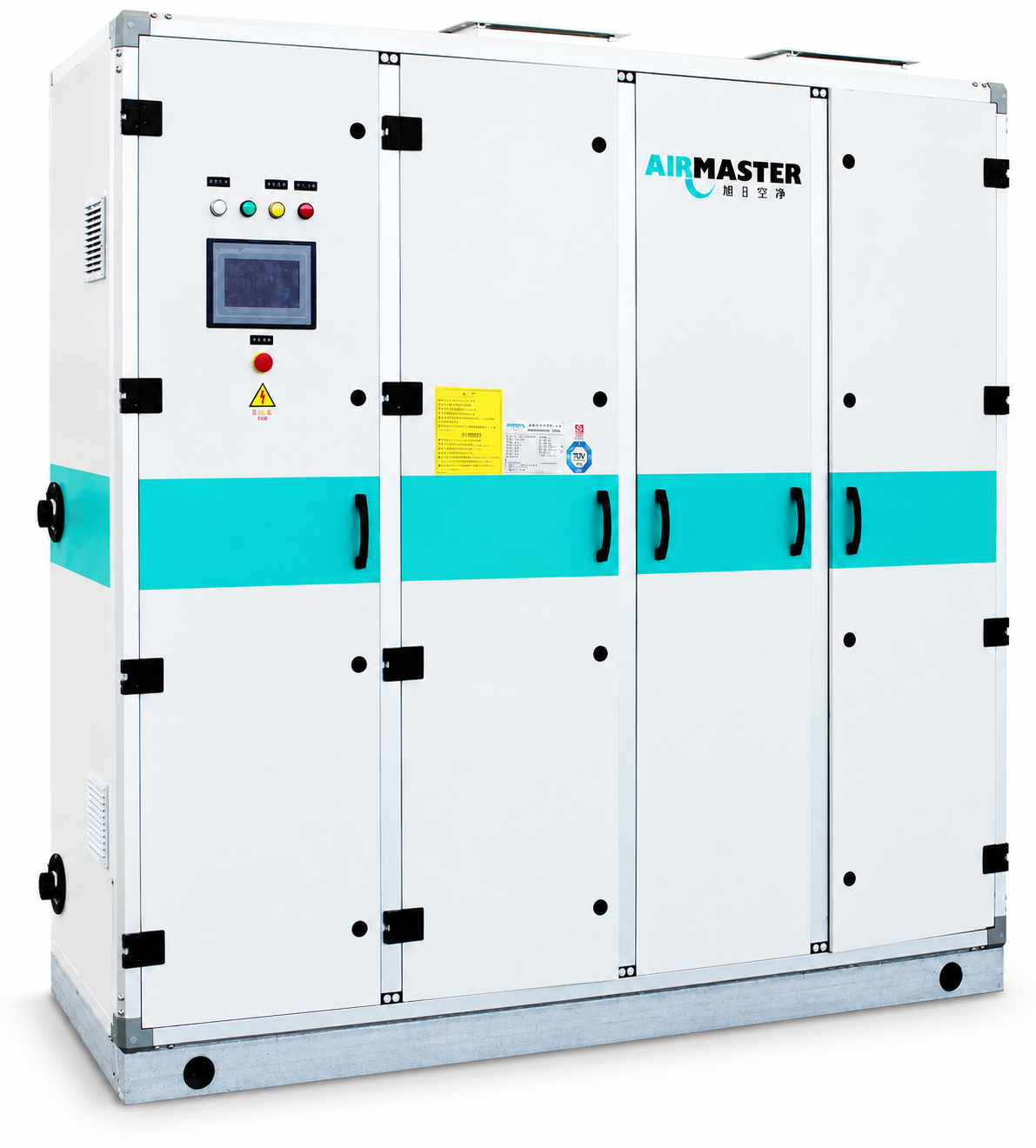

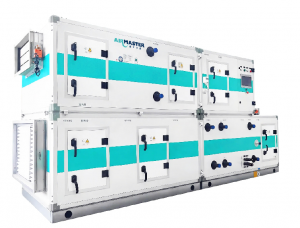

AAHM-N
The AAHM-N series uses a modular design to combine filtration, cooling, heating, humidification, dehumidification, heat recovery and air-purification sections for industrial and commercial central air-conditioning systems.
- Rated airflow: 2,000-200,000 m³/h
- Functional sections: Project-configurable

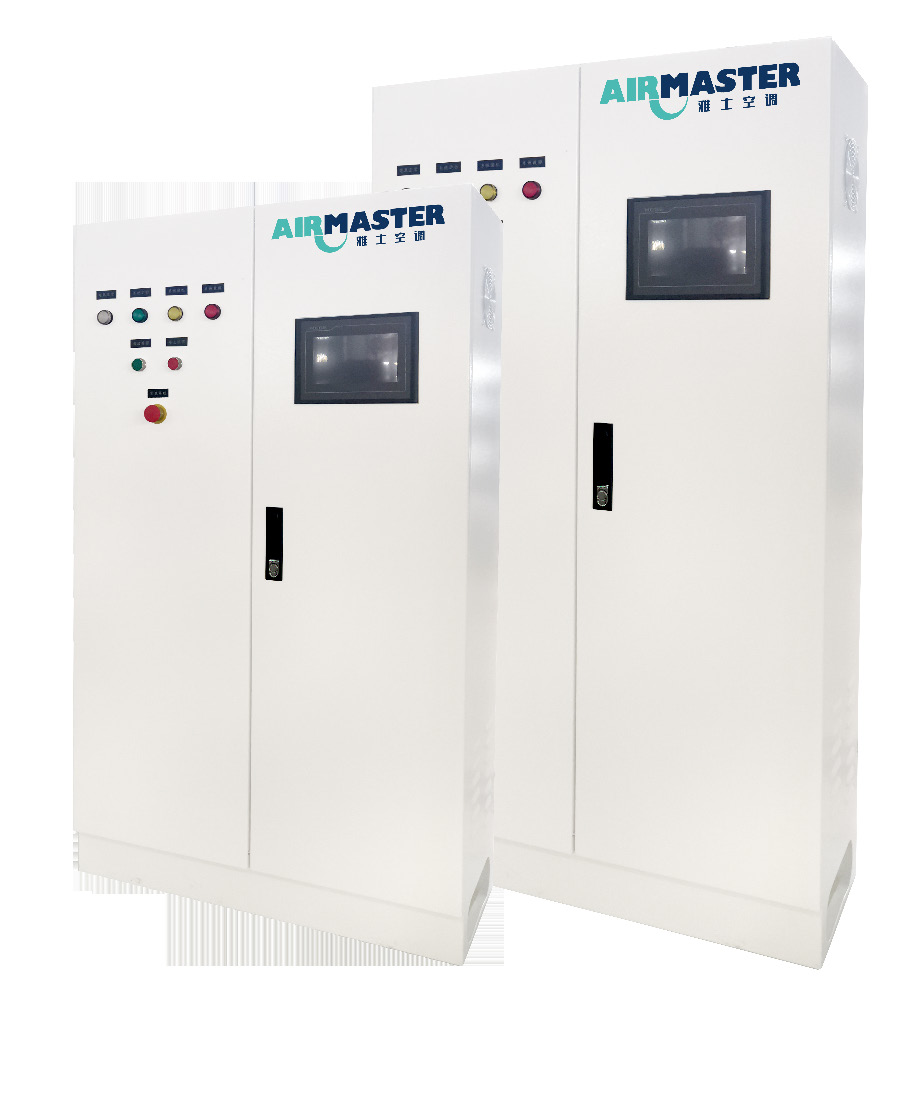

- Control options: DDC or PLC
Product Details
Six capabilities in one configurable platform.
Modular Configuration
Combine functional sections around the required indoor conditions and project layout.
Wide Airflow Range
Multiple unit sizes cover rated airflow from 2,000 to 200,000 m³/h.
Flexible Air Treatment
Integrate filtration, cooling, heating, humidification, dehumidification and heat recovery.
High-Efficiency Filtration
Configure primary, medium and sub-high efficiency filters for the target cleanliness level.
Multiple Humidification Options
Choose dry-steam, electrode, wet-film or spray humidification for the system conditions.
Optional Air Purification
Add UV, electrostatic, photocatalytic or ozone treatment when required by the application.
Engineered components inside the modular casing.

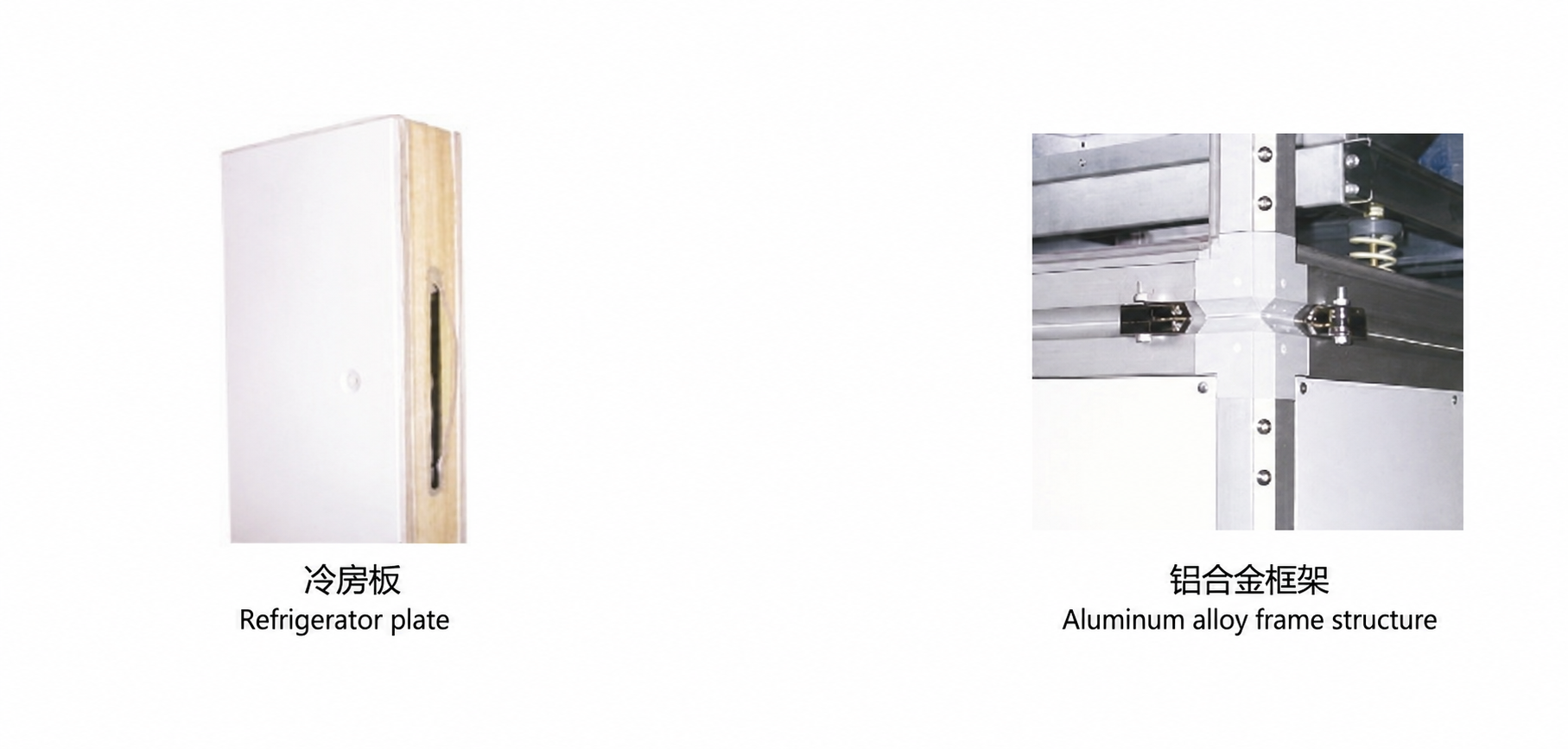

Frame & Box Plate
Thermal-break aluminium framing and double-skin insulated panels support strength, sealing and thermal performance.

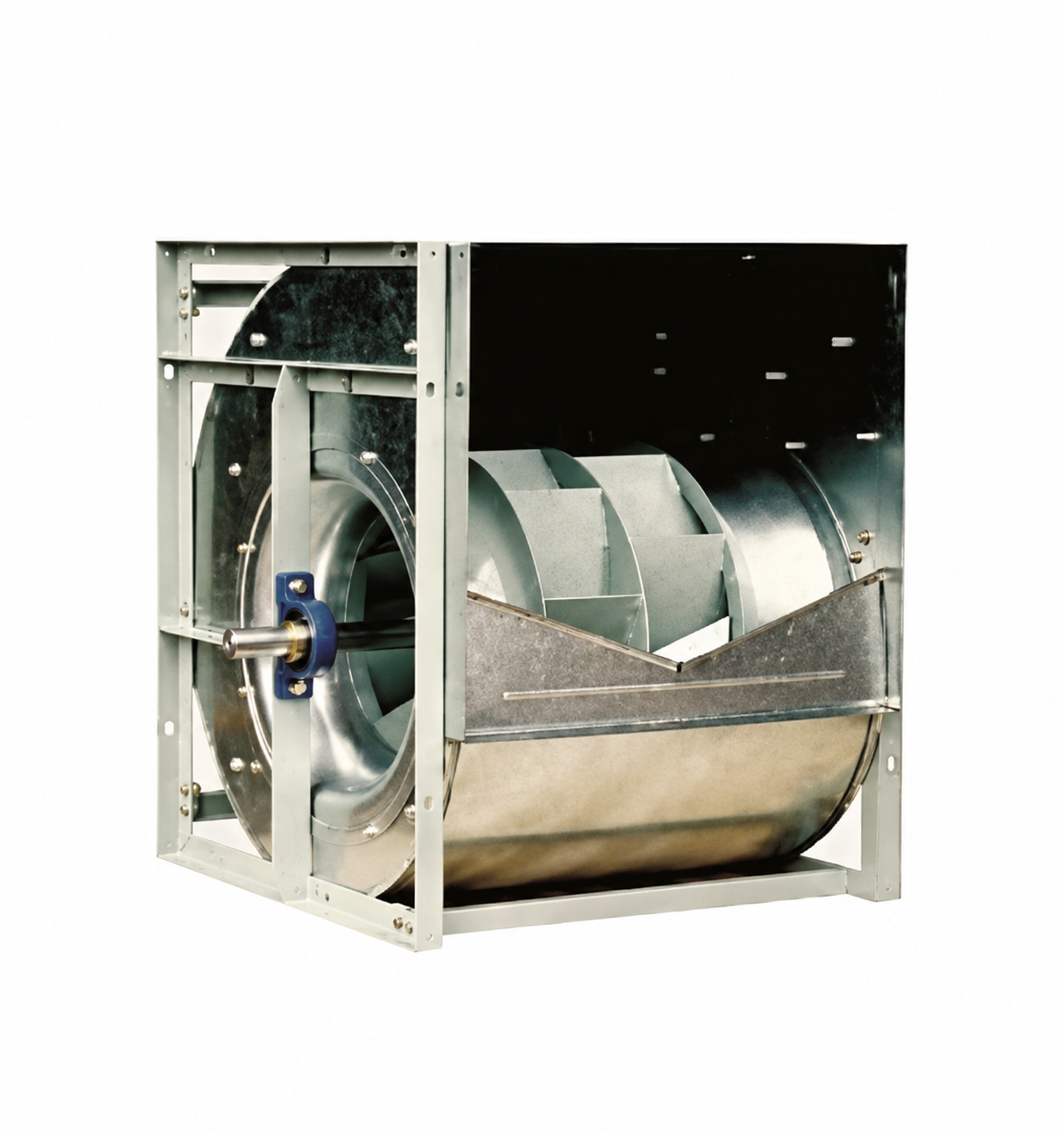

Fan System
Fan type and drive arrangement are selected for the required airflow, resistance, efficiency and acoustic target.

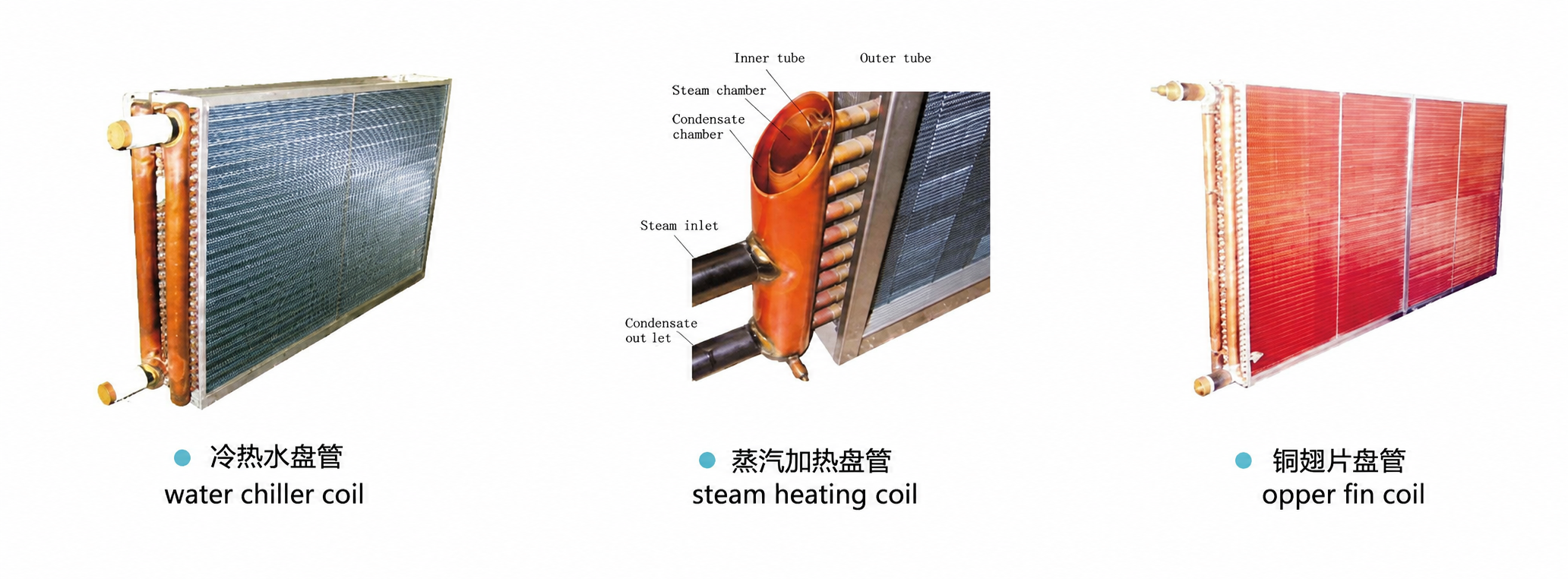

Coil Heat Exchanger
Water, steam and direct-expansion coil options provide cooling, heating and dehumidification duties.

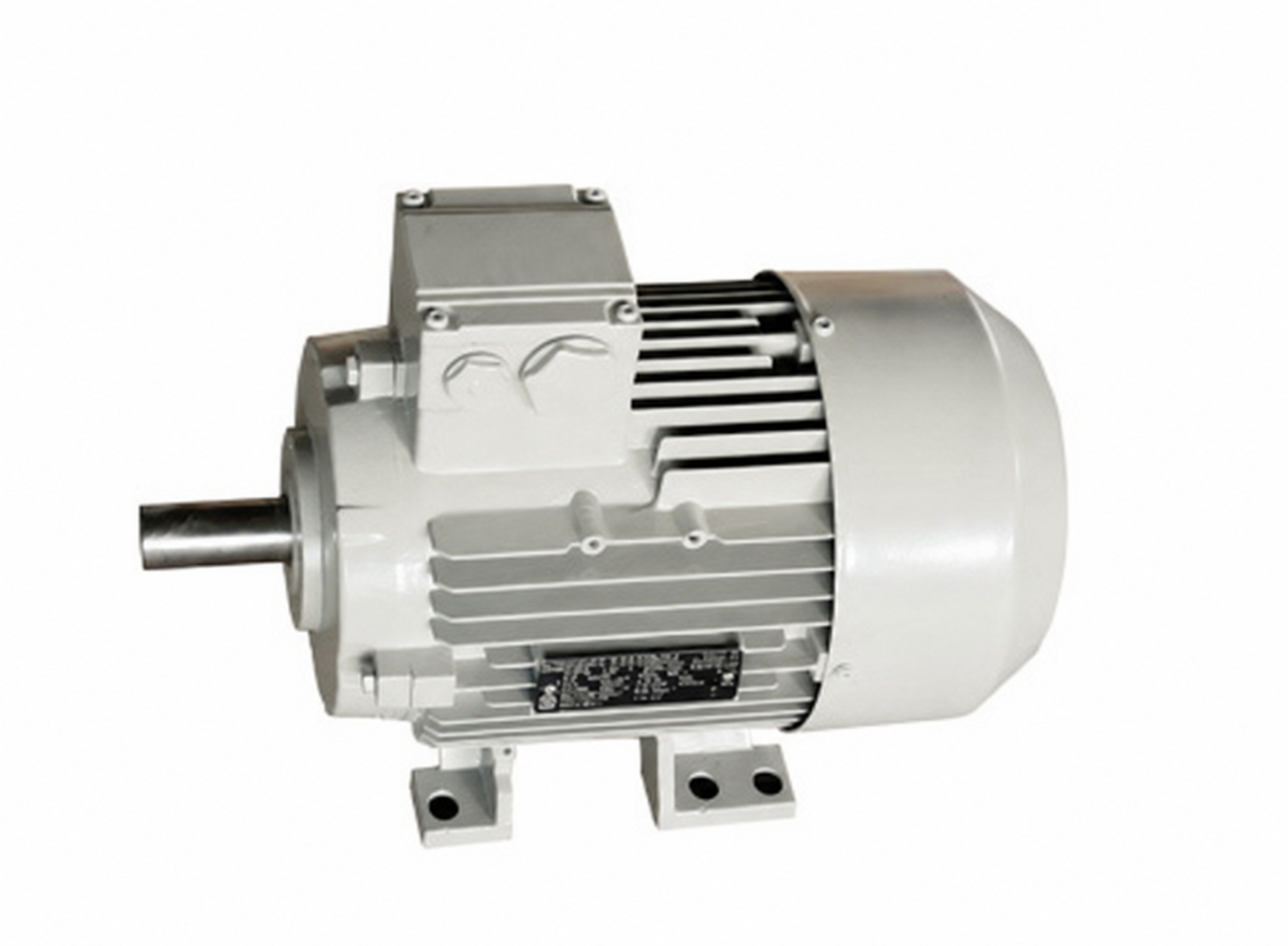

Motor
The motor is matched to the fan duty, with optional variable-frequency control within the specified operating range.

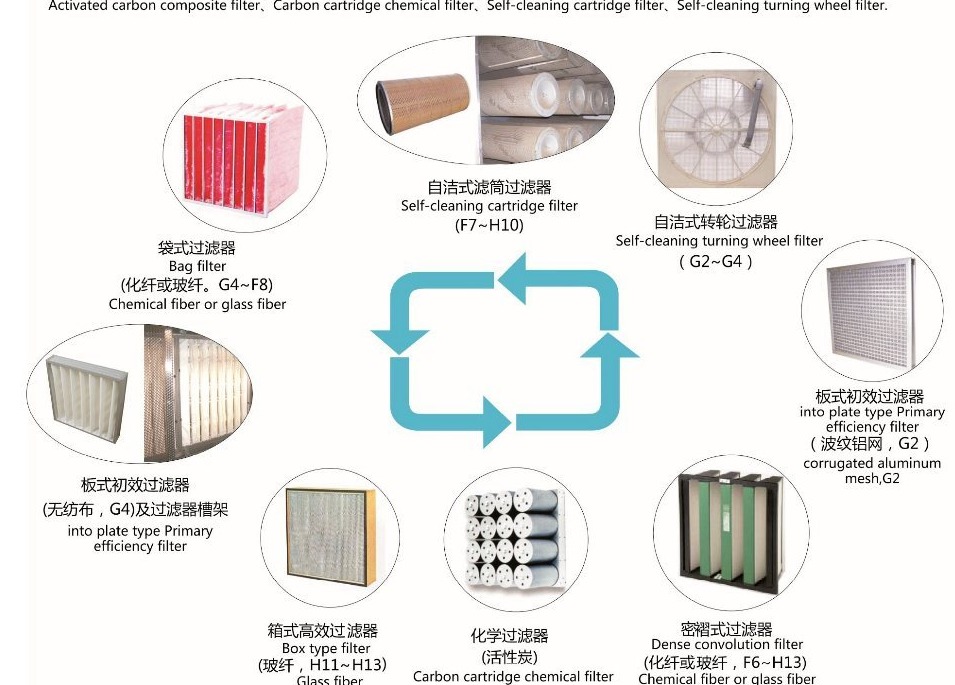

Build the filtration level around the application.
Primary Efficiency
Plate or bag configurations with typical efficiency grades G2-G4.
Medium Efficiency
Fiber or bag-filter configurations with typical efficiency grades F5-F9.
Sub-high Efficiency
Low-resistance filters for terminal sections, with typical grades H10-H13.

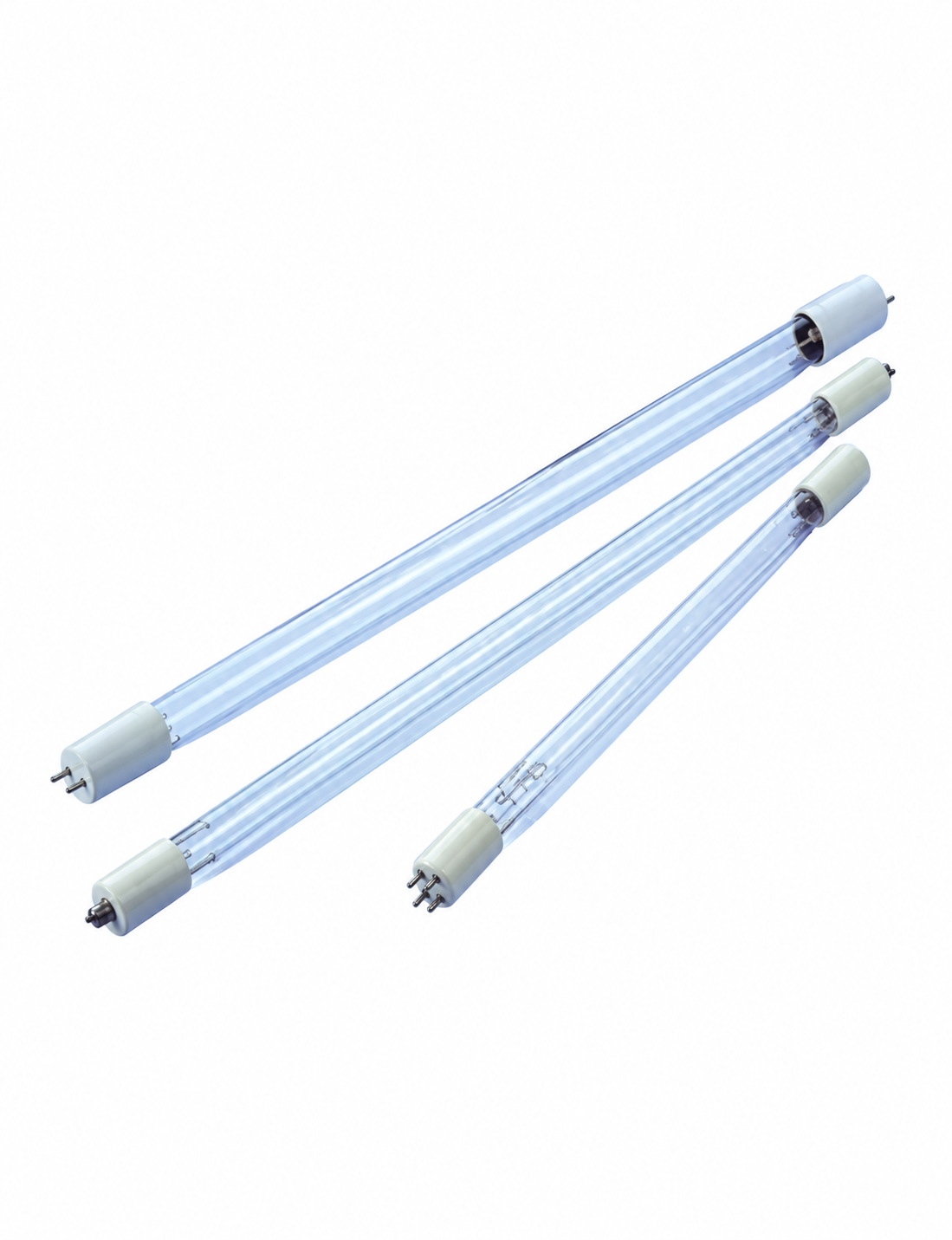

UV Sterilization
Ultraviolet lamps can be configured as an optional disinfection section.

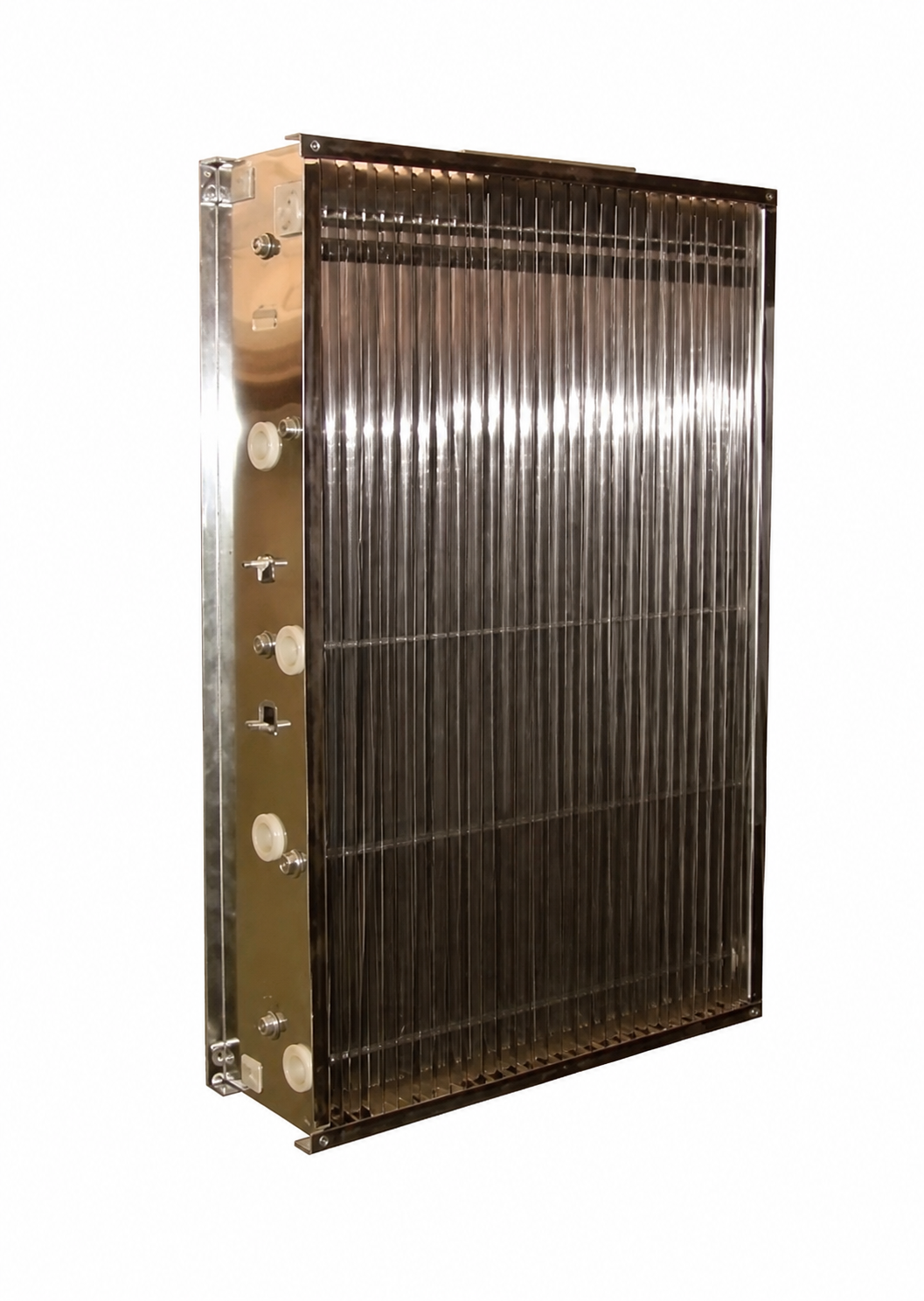

Electrostatic Purification
Electrostatic treatment captures fine airborne particles with low airflow resistance.

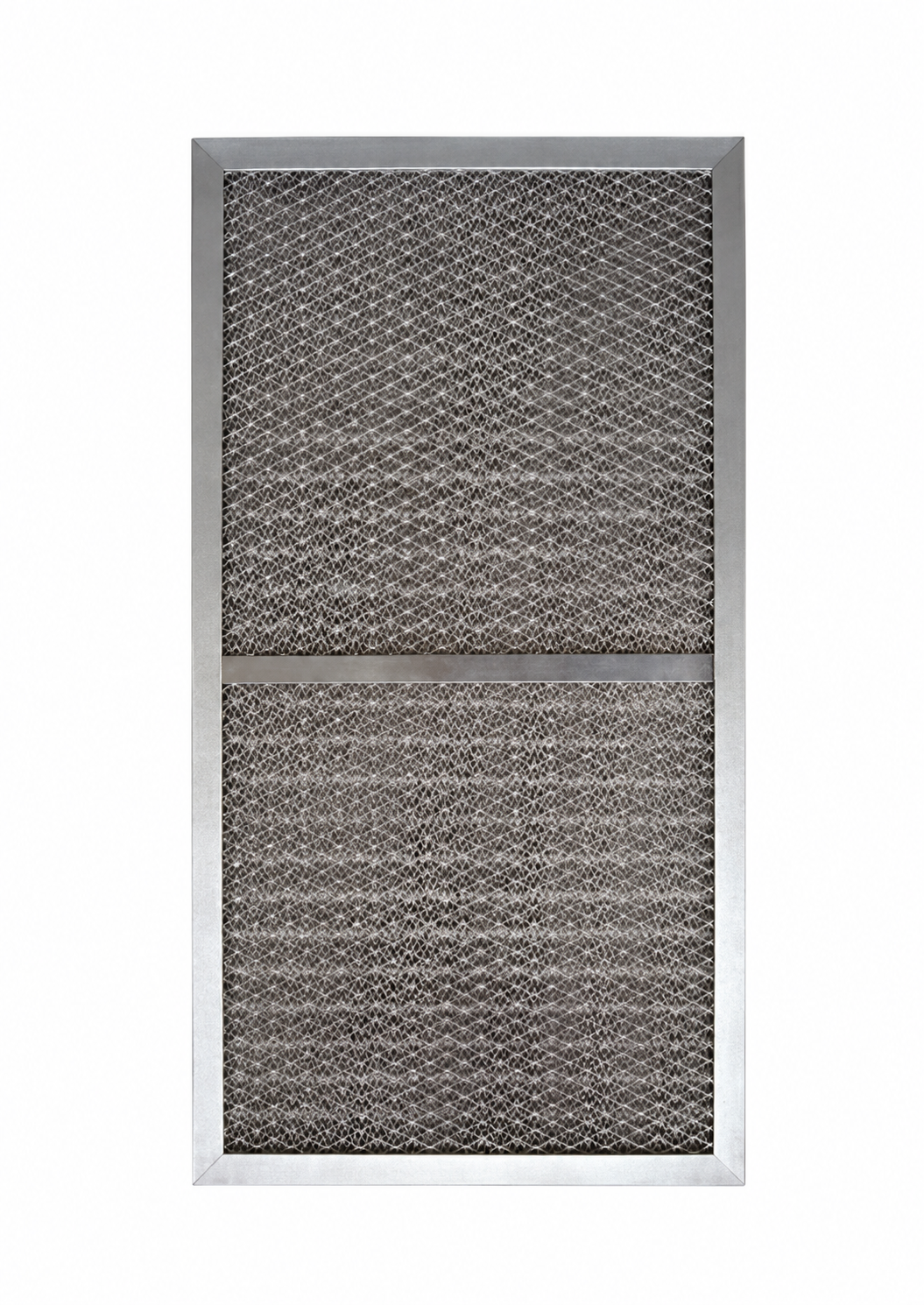

Photocatalytic Treatment
Photocatalytic sections provide an additional purification and disinfection option.
Four recovery arrangements for different system layouts.

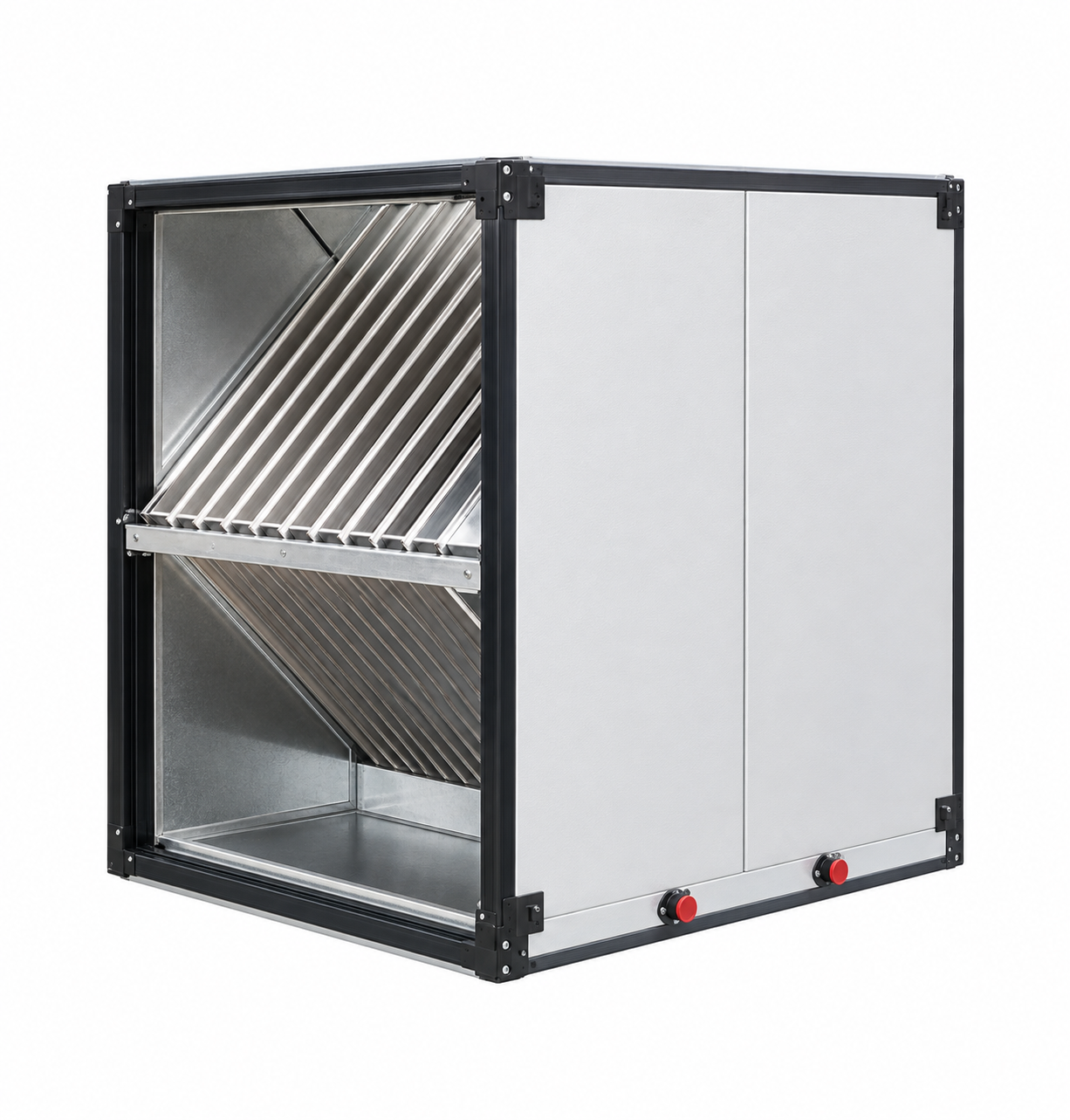

01 Plate-type Heat Recovery
Corrugated-plate arrangements provide a compact, washable sensible or total heat-recovery option.
02 Rotary-wheel Heat Recovery
Rotary media provide high total heat-recovery efficiency for suitable air paths.
03 Heat-pipe Recovery
Separate fresh-air and exhaust-air paths exchange heat through a refrigerant phase-change circuit.
04 Coil-type Recovery
A pumped water loop transfers sensible heat between separated exhaust and fresh-air coils.
Core data for preliminary product selection.
| Product Series | AAHM-N |
|---|---|
| Product Type | Modular air conditioning unit |
| Rated Air Capacity | 2,000-200,000 m³/h |
| Cooling Capacity | Selected by model and working condition |
| Heating Capacity | Selected by model and working condition |
| Fan Pressure | Configurable for the project air-system resistance |
| Filtration | Primary / Medium / Sub-high Efficiency |
| Cooling & Heating Coils | Optional |
| Humidification | Dry steam / Electrode / Wet film / Spray options |
| Heat Recovery | Plate / Rotary wheel / Heat pipe / Coil type |
| Air Purification | UV / Electrostatic / Photocatalytic / Ozone options |
| Functional Sections | Customizable |
Use the Download action above for the complete brochure and engineering data. Confirm the final selection with the project technical team.
Configure the unit around the project.
Fresh Air Handling
Supports dedicated outdoor-air intake, filtration and conditioning.
Cooling & Heating
Balances cooling and heating sections for year-round operation.
Humidity Control
Maintains stable humidity for process and comfort requirements.
Multi-stage Filtration
Combines primary, medium and high-efficiency filtration stages.
Air Purification
Adds UV, electrostatic or photocatalytic treatment when required.
Heat Recovery
Recovers exhaust-air energy to improve overall system efficiency.
Noise Control
Controls casing, fan and airflow noise for sensitive spaces.
Custom Combinations
Configures functional sections around the project conditions.
